viewMultiTCW - View and Query Multiple Species
Start | Clusters | Pairs | Sequences | Alignment | Sequence Details | Annotation Hits
Clusters
Table | Filters | Columns

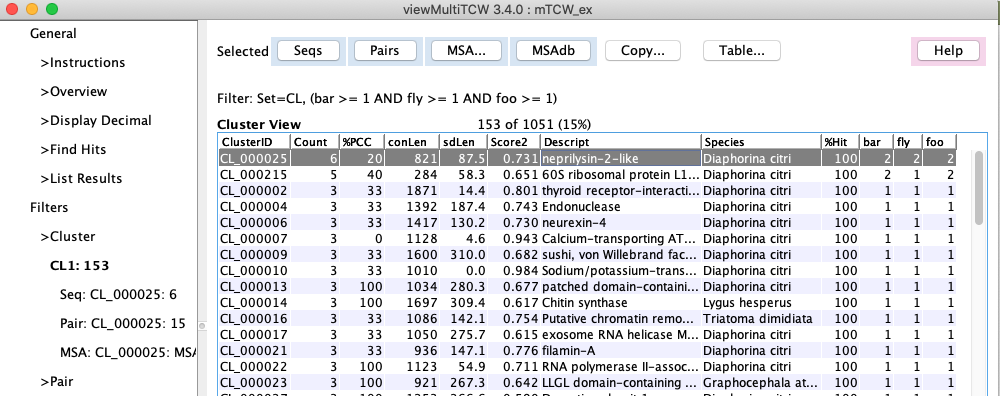

Cluster Table

The table on the right was created with the filter to show the clusters of method 'CL-Closure' with at least one sequence for each dataset.

Select a row followed by:

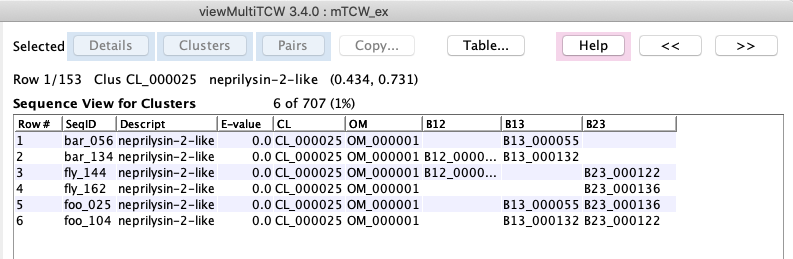

  • Sequences: the table of sequences for the cluster will be shown (see lower left image).

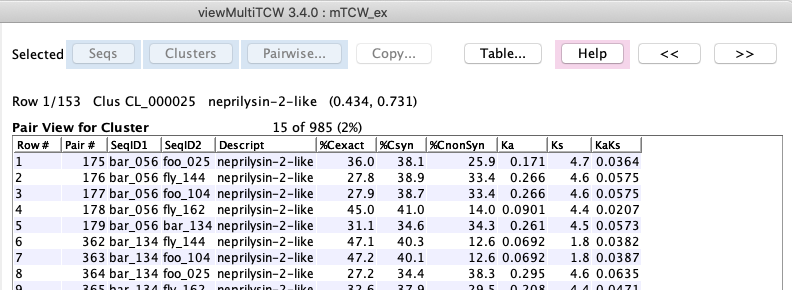

  • Pairs: the table of pairs for the cluster will be shown (see lower right image).

Sequences in selected cluster Pairs in selected cluster

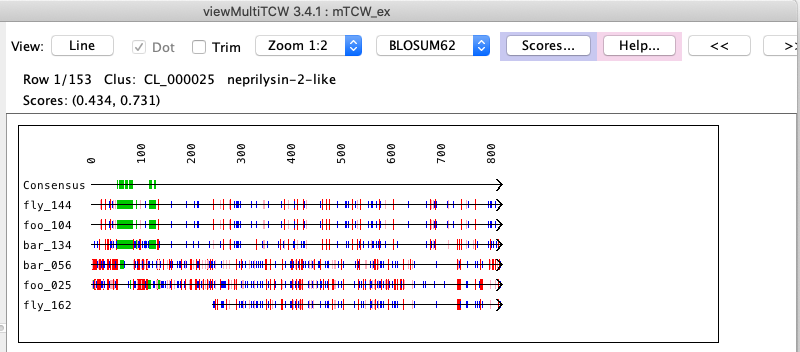

Multiple sequence alignment for cluster

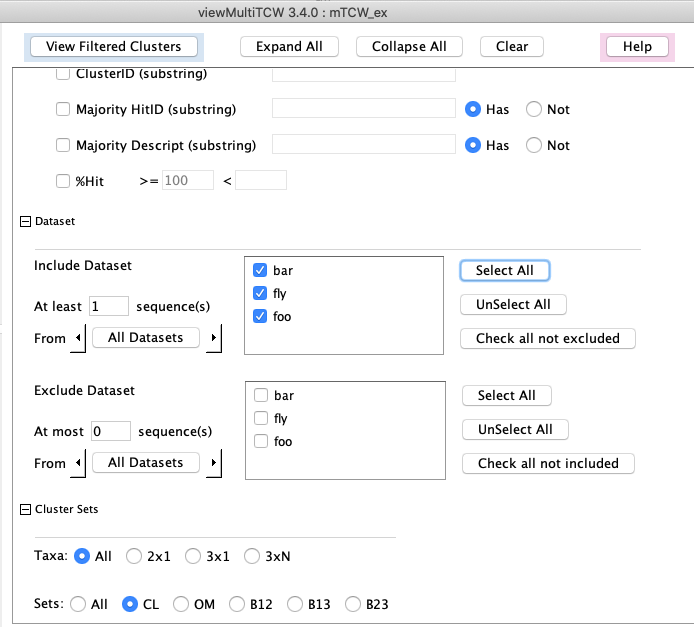

Cluster Filters

The following filters were selected for the above Cluster table.

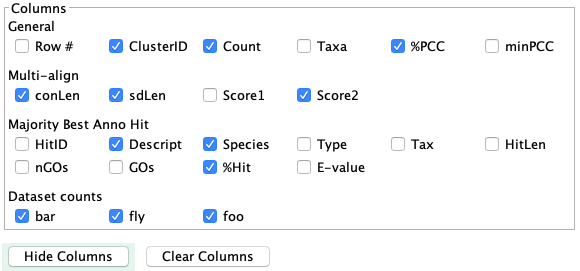

Cluster Columns

The following columns were selected for the above Cluster table. The rules for columns are listed in Start.
