runMultiTCW - Build Comparison Database from Multiple sTCWdbs
Main Panel | Additional Panel | Example summary statistics | References

runMultiTCW takes as input two or more singleTCW (sTCW) databases and builds a multiTCW (mTCW) database of clustered sequences. See mTCW UserGuide for details.

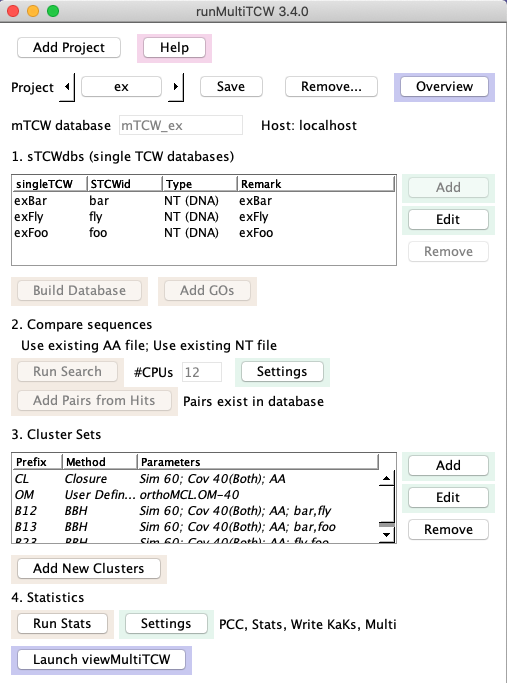

Main panel

1. sTCWdbs (single TCW databases).

Add/Edit: Define the input sTCW databases (see panel #1), which can be created from nucleotide sequences (NT-sTCW) and/or protein sequences (AA-sTCW). For NT-sTCW, the nucleotide sequences and translated ORFs will be loaded.

Build database: Builds a database of all sequences, TPM, DE, annotations and GOs.

2. Compare sequences

Run Search: This creates a file of all sequences and performs a heuristic search1 against itself to determine similar sequences. The search program and parameters can be changed (see panel #2).

Add Pair from Hits: All pairs from the Hit file are entered into the database.

3. Cluster Sets.

Add/Edit: Add a cluster type to be computed (see panel #3), where the methods are:

  1. BBH - TCW algorithm for Bi-directional Best Hit between N sTCWdbs, where each resulting cluster has N sequences and all pairs are BBH.
  2. Closure - TCW algorithm for determining clusters, where each sequence in a cluster has a hit, good similarity and good overlap with all other sequences in the cluster.
  3. Best Hit - TCW algorithm for clustering on Hit ID or Hit Descriptions.
  4. OrthoMCL3 - runMultiTCW executes the orthoMCL scripts and then loads the results into the mTCW database.
  5. User Defined - load a file of clusters where the file format is the orthoMCL format.

Add New Cluster: The clusters defined in the table will be computed and added to the database.

4. Statistics

Add Stats: Add statistics (see panel #4), as follows.

  1. PCC (Pearson Correlation Coefficient): This is only relevant if there are shared conditions, as it is used to determine how similar the TPM values of the conditions are. It is run on all pairs in the database.

  2. The following is only relevant for mTCW databases that are built with only NT-sTCW databases, as it is based on the aligned nucleotide coding regions.
    1. Each pair that has a hit and is in a cluster is pair-wise aligned.
      1. Statistics are computed from the alignment, such as synonymous and nonsynonymous codons, TS/TV, etc (see e.g. summary).
      2. The KaKs files are written from the alignments for input to the KaKs_calculator4 along with a script to run from the terminal.
    2. Read KaKs files: This is only relevant if the KaKs_calculator has been executed on the KaKs files. It reads the results into the database.

  3. Compute the MSA for all clusters and score them. The MAFFT4 program is used; it occasionally fails on a cluster, in which case MUSCLE5 is used.

Additional panels

Go to top

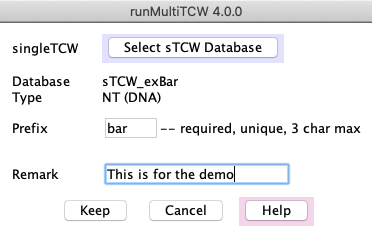

1. Add single TCW database

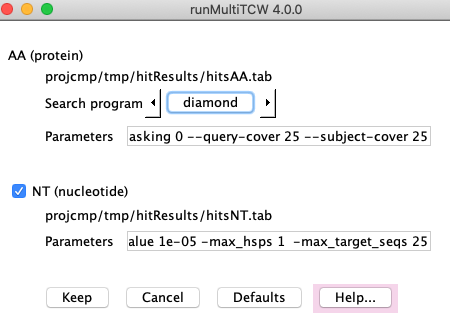

2. Run Search
3. Add a cluster method

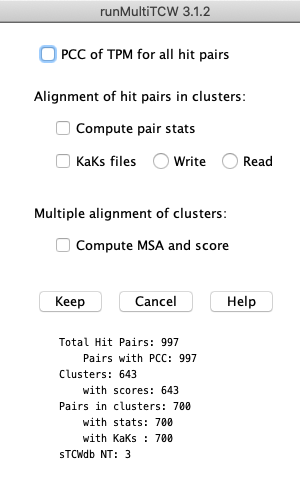

4. Add statistics. The counts on the bottom are updated after Run Stats is executed.

Example summary statistics

Go to top
Project: ex  Cluster: 868  Pairs: 997  Seqs: 707  Hits: 2.1k   PCC Stats KaKs Multi

Created: 24-Oct-20 v3.1.0     Last Update: 26-Oct-20 v3.1.0

DATASETS: 3
           Type  #Seq  #annotated  #annoDB  Created    Remark
      bar  NT     250         244        2  05-Oct-20  exBar
      foo  NT     250         245        2  05-Oct-20  exFoo
      fly  NT     207         205        2  18-Oct-20  exFly

CLUSTER SETS: 4
      Prefix  Method        Parameters
      BB      BBH           Sim 60; Cov 40(Both); bar,fly,foo
      HT      BestHit       Description; Sim 20; Cov 50
      CL      Closure       Sim 60; Cov 40(Both)
      OM      User Defined  ./projcmp/ex/orthoMCL.OM-40

   Sizes
      Prefix  =2   =3  4-5  6-10  11-15  16-20  21-25  >25  Total  #Seqs
      BB       0  155    0     0      0      0      0    0    155  65.8%
      HT      74  147    4     0      0      0      0    0    225  86.0%
      CL      90  153    1     1      0      0      0    0    245  91.9%
      OM      51  186    3     3      0      0      0    0    243  98.3%

   Statistics
      Prefix  conLen  sdLen     Score  SD    Trident  SD
      BB      535.55  56.94     11.04  3.44     0.75  0.17
      HT      599.68  80.10      8.08  5.24     0.71  0.22
      CL      569.77  57.45      8.48  5.36     0.74  0.18
      OM      596.01  84.14      8.80  6.69     0.68  0.22

PAIRS: 997
   Hits
      AA   Diff 860     Same 110      Similarity 69.5%   Coverage 82.8%
      NT   Diff 661     Same 2        Similarity 86.9%   Coverage 64.0%

   Aligned: 706   CDS: 1.0Mb   5UTR: 80.3kb   3UTR: 111.0kb
      Codons         306.6k     Amino Acids                Nucleotides
      Exact           58.6%     Exact            87.8%     CDS  Diff    25.4%
      Synonymous      29.2%     Substitution >0   5.8%          Gaps     9.3%
        Fourfold      15.2%     Substitution<=0   6.4%          SNPs    16.1%
        Twofold       11.4%                                5UTR Diff    34.4%
      Nonsynonymous   12.2%                                3UTR Diff    36.7%

                     Pos1   Pos2   Pos3  Total                   GC  CpG-Nt  CpG-Cd
      Transition     9.1%   4.6%  36.9%  50.5%       Both     37.7%    3.9%    2.2%
      Transversion  11.3%   7.2%  30.9%  49.5%       Either   54.3%   11.3%    5.8%
      ts/tv          0.80   0.64   1.19   1.02       Jaccard   0.69    0.35    0.38

   KaKs method: YN    Pairs: 706

      Average            Ka/Ks          Quartiles               P-value
      Ka       0.085     Zero    51     Q1(Lower)   0.01670     <1E-100  428
      Ks       2.527     Ka=Ks    0     Q2(Median)  0.03763     <1E-10    88
      P-value  0.023     Ka<Ks  650     Q3(Upper)   0.09073     <0.001    57
                         Ka>Ks    5                             Other    133

References

Go to top
  1. Supported search programs: any of the following programs can be used for the AA search, and blastn is used for the NT search.
    • BLAST: Altschul SF, Madden TL, Schaffer AA, Zhang J, Zhang Z, et al. (1997) Gapped BLAST and PSI-BLAST: a new generation of protein database search programs. Nucleic Acids Res 25: 3389-3402.
    • Diamond: Buchfink B, Xie C, Huson D (2015) Fast and Sensitive Protein Alignment using DIAMOND, Nature Methods, 12, 59-60 doi:10.1038/nmeth.3176.
  2. Li L, Stoeckert CJ, Jr., Roos DS (2003) OrthoMCL: identification of ortholog groups for eukaryotic genomes. Genome Res 13: 2178-2189.
  3. Zhang Z, Li J, Xiao-Qian Z, Wang J, Wong, G, Yu J (2006) KaKs_Calculator: Calculating Ka and Ks through model selection and model averaging. Geno. Prot. Bioinfo. Vol 4 No 4. 259-263.
  4. Katoh K, Standley DM (2013) MAFFT Multiple Sequence Alignment Software Version 7: Improvements in Performance and Usability. Molecular Biology and Evolution Vol 30, Issue 4 772:780
  5. Edgar RC (2004) MUSCLE: multiple sequence alignment with high accuracy and high throughput. Nucleic Acids Res 32: 1792-1797.
