viewMultiTCW displays information from a multiTCW (mTCW) database, which was created by one or more singleTCW (sTCW) databases. A sTCW database can be created from nucleotide (NT-sTCW) or protein (AA-sTCW) sequences. A mTCW database created only from NT-sTCW databases contains both nucleotide sequences and the corresponding translated ORFs, and special statistics on the coding regions, e.g. Ka/Ks from the KaKs_calculator1.

1. Overview

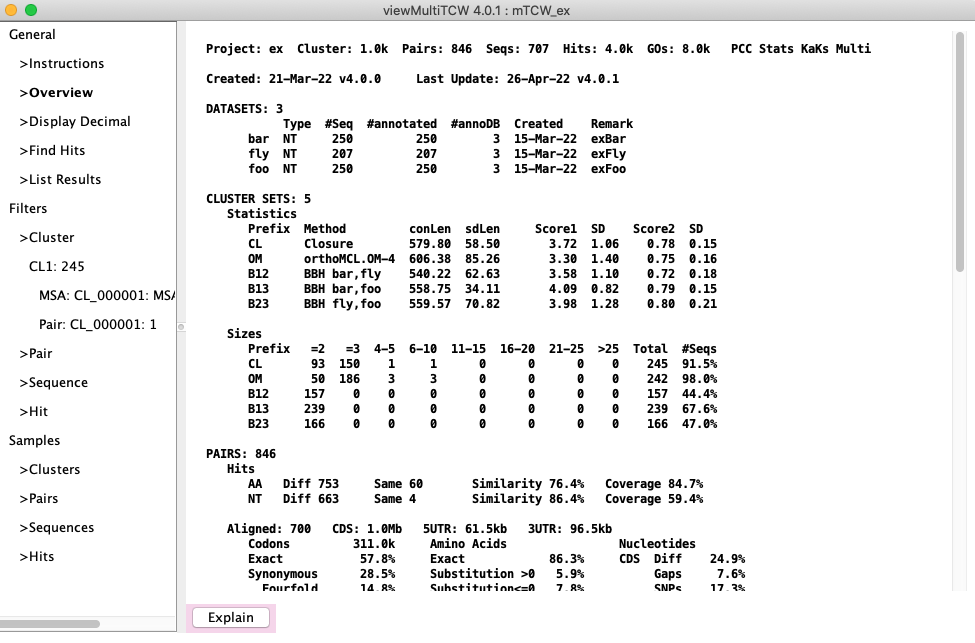

Scrolling down in the overview shows the statistics summary, and the Explain button explains how each value was computed.

There are three types of tables: clusters, pairs, and sequences. The tables can be very big, so the top three tabs on the left provide Sample tables of just a few 1000's. All three table types have Filters, which limits the number of rows that are displayed.

The types of clusters in a table depends on how the database was built (see runMulti) for detail. This mTCW database has 6 different types of clusters, as described in the Overview on the right.

2. Cluster Table

Go to top
The table on the right was created with the filter to show the clusters of method 'CL-Closure' with at least one sequence for each dataset.

Select a row followed by:

  1. Sequences: the table of sequences for the cluster will be shown (see lower left image). The columns Ww, Xx, Yy, Zz are the RPKM values.
  2. Pairs: the table of pairs for the cluster will be shown (see lower right image). Only pairs that share a blast hit will be in the database. Only two of these pairs has a PCC>0.8, which is the correlation between the RPKM values in the sequence table.
Sequences: Sequences in selected cluster Pairs: Pairs in selected cluster

3. Pairs Table

Go to top
Selecting a row followed by Sequences creates a table of two sequences; from the sequence table, you can see how they align.

The figure on the right shows the columns for pairs. All 3 types of table work as follows:

  1. The Select Column panel displays all possible columns.
  2. Mousing over a column describes it in the lower left.
  3. Selecting or deselecting a column name immediately shows or removes the column from the table.
  4. The columns can be sorted and moved around.
All three tables also has a "Show Column Stats" option to display summary statistics for the rows and numeric columns of the displayed table, as illustrated on the right (results from the Pair Table displayed above).

4. Sequence Table

Go to top
  1. Pairwise...: The first two options perform AA or NT alignment for all selected sequences will using dynamic programming. The third option aligns a pair of sequences on their AA, CDS and NT sequences using dynamic programming.
  2. multiDB: displays the multi-alignment for a cluster stored in the database.
  3. Multi...: (not available with Applet) either the cluster or selected sequences will be aligned using MUSCLE3 or MAFFT4. Their alignments and scores are written to file.

5. Alignments

Go to top
Multi-alignment of a cluster.

AA, CDS and NT alignments of a pair. The text alignment can be viewed by clicking the AA, CDS or NT buttons.

Menu for the CDS text alignment: Text alignment of the CDS showing matches. The '|' are mutations in synonymous codons, the '*' in nonsynonymous codons.

6. Filters

Go to top
Cluster Filter
Pair Filter
Sequence Filter
Pair Filter (continue)
