Though the options for the annotation should be set in the runSingleTCW interface, they can be Save and then the annotation run from the command line with:
	./execAnno <project>

Contents

Updating or redoing annotation

Go to top
You may wish to re-run annotation steps for following reasons:
  1. Update to a newer AnnoDB (e.g. more recent UniProt release): In this case, you would delete existing annotation and all existing hit (tab) files.
  2. Add a new AnnoDB: In this case, make sure to uncheck all annoDBs in the runSingleTCW interface that are already in the database.
  3. Remove an annoDB: In this case, you will need to delete the existing annotation and reload all annoDBs that you want to keep. The original hit files can be reused.
  4. Add additional similar pairs. In this case, turn off all other options and run Annotate; additional pairs will be added with the existing hit files.
The image on the right shows what can be removed. Select the top option for #1 and #3. Select the third item for the #1.
Changes can be accomplished by editing the AnnoDB list in runSingleTCW, then re-running Annotate, and responding to the yes/no prompts which will appear on the console, as follows (note, at any point during these question, you can Ctrl-C to stop the process):
	?--Annotation exists in database. Enter [a/d/e]
	Add to existing annotation [a], Delete annotation [d], Exit [e]:
Answer 'a' to add to the existing annotation.
Answer 'd' to replace all annotation. Note that this does NOT delete hit files from disk, and they may be loaded again if desired.
Answer 'e' to exit.

The following is a flow for adding annotation from existing files.

	Checking annoDB fasta
	   DB#1 diamond SP AA: projects/DBfasta/UniProt_demo/sp_plants/uniprot_sprot_plants.fasta
	   DB#2 blast SP AA: projects/DBfasta/UniProt_demo/sp_fullSubset/uniprot_sprot_fullSubset.fasta
	   DB#3. blastn GB NT: projects/DBfasta/NT/dcitri.fa
	   Pairs blastn: /projects/demoTra/hitResults/tra_seqNT.fa
	   Pairs tblastx: /projects/demoTra/hitResults/tra_seqNT.fa
	   Pairs diamond: /projects/demoTra/hitResults/tra_orfSeqAA.fa
	Checking for existing tab files

	?--At least one hit tab file exists for selected set.
	   Use current tab files [u], prompt on each tab file [p], exit[e]:  p

	   DB#1 uniprot_sprot_plants.fasta
		   Output exists: /projects/demoTra/hitResults/tra_SPpla.dmnd.tab; Date: Sun Jan 7 1:37:16 MST 2021
	?--Load this existing file [y] or perform new search [n]  [y/n]:
A 'y' will use the existing file and not redo the search.

If you get the prompt:

	?--DB#1 The annoDB projects/DBfasta/UniProt_demo/sp_plants/uniprot_sprot_plants.fasta
		  has been processed previously. Continue? (y/n)?
This means you have already added an annoDB with the exact same path name.

Pairs only

The pairs-only can be removed from the database using:
	./execAnno <DB Name> -p

Prune hits

Go to top
The default for this option is None, though the database queries are faster if the tables are smaller. If there is no reason to need all hits, it is strongly recommended that you use the stringent Description option.

Prune: None

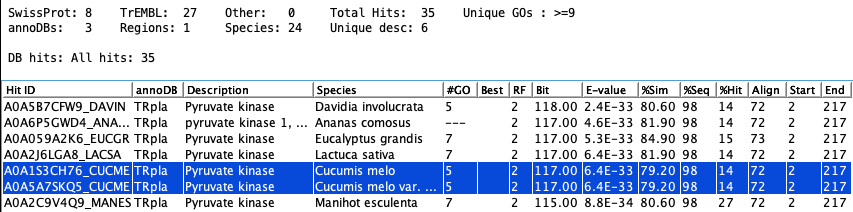

This option keeps all hits found using the search parameters provided on the Add or Edit AnnoDB panel. The following shows the hits for tra_018, where the two highlighted hits have the same alignment values.

Prune: Alignment

If all alignment columns in the Blast or DIAMOND file are the same between two hits for a sequence along with the hit sequence length and description, the best one is retained. For example, the following are from the output of DIAMOND showing all alignment values:
tra_018	tr|A0A1S3CH76|A0A1S3CH76_CUCME	79.2	72	15	0	2	217	80	151	6.41e-33	117
tra_018	tr|A0A5A7SKQ5|A0A5A7SKQ5_CUCME	79.2	72	15	0	2	217	80	151	6.41e-33	117
The descriptions are compared using the same rules as discussed below for Prune: Description. The actual hit sequences are NOT compared.

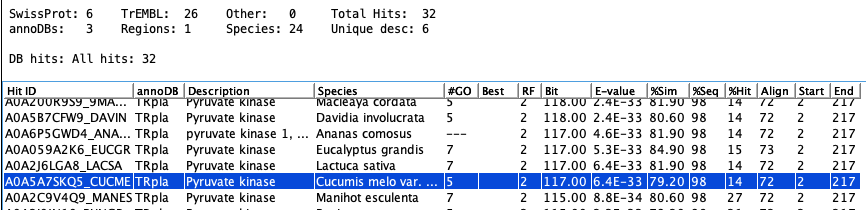

The following is the results for tra_018.

Sometimes two hits can look identical from the Sequence Detail Hit Table, but the Show.. button shows all columns and will elucidate the differences (see Show A0A5A7SKQ5_CUCME). The hit start or hit end may be different, or the hit sequence lengths.

Prune: Description

The best hit for each 'description' for each annoDB is retained. The full description must be the same except that the comparison is case-insensitive and any description ending with "{...}" has the ending removed. For example, the following three are the same:
ZF-HD family protein {ORGLA09G0180300.1}
ZF-HD family protein {ORGLA09G0074600.1}
ZF-HD Family Protein

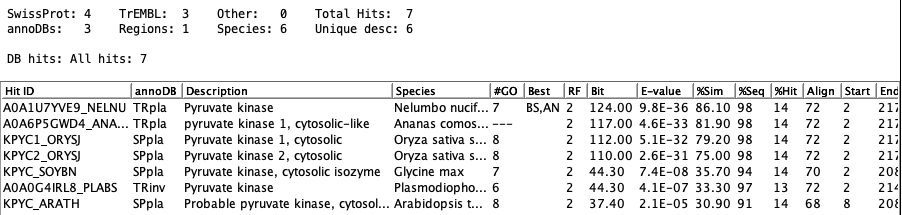

The following shows the results for tra_018. Note that both both TRpla and TRinv have a description "Pyruvate kinase" as the pruning is by annoDB.

Use of GOs in pruning

Go to top
For both the Description and Alignment pruning:
  1. if two hits are being compared and found to be the same,
  2. if the GO database is defined and if two bit-scores are close,
  3. then the hit with the most GOs is saved.
For example, the following shows the top hits for tra_011, where Description pruning only keeps A0A0J8CG74_BETVU since its bit-score is just a little lower than A0A022Q8Q6_ERYGU and it has 2 GOs.

If it is desired to always use the best bit-score, do not define the GO database until after Annotate is run, then define the database and run GO only.

Command line options for pruning

Go to top
The following allows you to experiment with the pruning. However, it is not guaranteed to leave your database in a perfect state, so you may want to re-Annotate once you figure out what pruning scheme you want.
First define the GO database and select Ignore on Annotate. The GOs should not be computed until after the hits are finalized. However, the pruning algorithm will use the #GOs in determining the best hit, which is why you need to define the GO database (built with runAS). If you do not plan on creating a GO database, than this can be ignored.
Command line options:
 -p Prune redundant hits  (annotation must already be done)
    -pt <integer> 1 Alignment  2 Descriptions   (this overrides what is set in Options)
    -pp <integer> Print first n pruned seq-hits per annoDB
    -pr Save/restore hit tables before processing
  1. Using runSingleTCW, set the Prune option to None and check Ignore on Annotate. Run Annotate and exit.
  2. View your database with all hits.
  3. Run from the command line:
    	./execAnno demoTra -p -pt 1 -pp 4 -pr

    The "-pr" options save the hits to two tables in the database prefixed with "save". It will then create the hits tables with pruning option of "Alignment".
    The "-pp 4" option will print to the terminal the first 4 pruned hits per annoDB (do not add this flag if you do not care to see these).
  4. View your database with all the identical alignments per annoDB removed.
  5. Run from the command line:
    	./execAnno demoTra -p -pt 2 -pp 4 -pr

    The "-pr" option will notice that the saved tables exist and will restore them before continuing.
  6. View your database with all the identical descriptions per annoDB removed.
  7. The saved hit tables are still in the database; they will be removed when you remove annotation to re-annotate using runSingleTCW, or you can drop them using the mysql commands:
    	drop table save_unique_hits;
    	drop table save_unitrans_hits;


Comparison of prune results

Go to top
The following table shows the reduction in hits for the two prune types from demoTra and Oryza sativa.
 DemoTraOryza sativa
Prune TypeUnique HitsReduceSeq-hit pairsReduce Unique HitsReduceSeq-hit pairsReduce
None 12,472 ----- 18,442 ----- 1,340,909 ----- 4,376,663 -----
Alignment 11,300 9.4% 16,660 9.7% 1,221,375 8.9% 4,065,913 7.1%
Description4,378 64.9% 7,112 61.4% 340,909 74.7% 1,514,641 65.4%

Further comparisons for Oryza sativa

bulletAll terms are described on the Overview Reproduce popup, but briefly: Bits is the hit with the best bit-score for a sequence. Anno is the hit with the best annotation for a sequence. Rank=1 is the best hit for a sequence for an annoDB, e.g. if there are 6 annoDBs, a sequence has 6 Rank=1.

bullet The Only, Bits, and Anno are about the same between the no pruning and description pruning. The Unique and Total are greatly reduced for the description pruning.

bullet Right of Rank=1 refer to the Rank=1 hits. All numbers are just about the same between the no pruning and description pruning.

bullet The high hitting species stay about the same for Bits and Anno, but the lower hitting species vary.

bulletThe Sequences with GOs reduced from 89% to 86%, but the Best hit with GOs (Best Bits) increased from 62.6% to 66.5%.

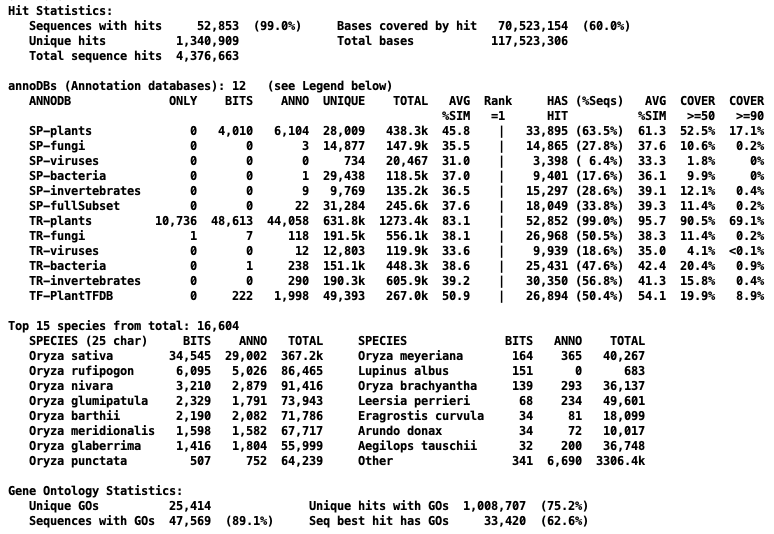

Overview with no pruning

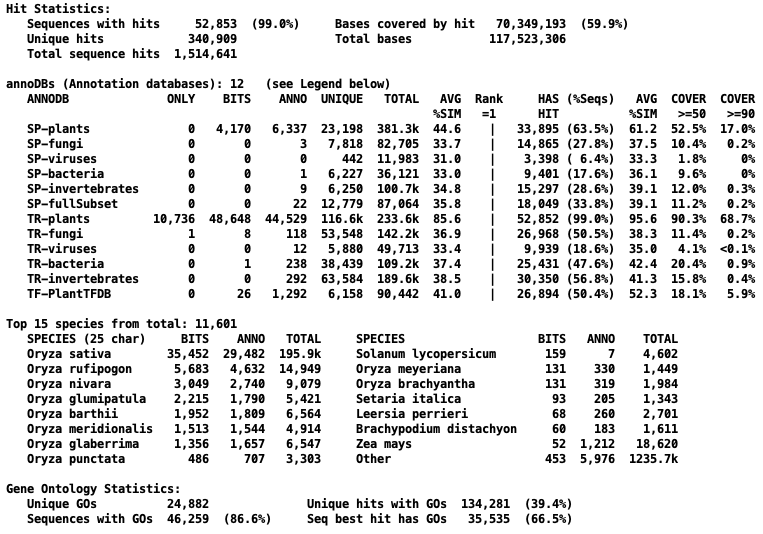

Overview with description pruning

Save database

Go to top
To save an existing annotated database, use:
	mysqldump -u <user> -p <database_name> > <dump_file_name>
